NumberSmasher Xeon 2U Twin² Systems (Four Servers in 2U)

2U Twin2 Xeon Scalable Processor High-Density Servers

NumberSmasher Twin2 Xeon systems are high-density, cost-effective rack servers ideal for compute- & memory-intensive applications. Each of the four modules operates as an independent server with its own CPUs, memory, networking and storage.

All servers are individually serviceable – each may be removed while the remaining three units continue running. The 2U chassis provides shared cooling and redundant power supplies, which increases efficiency and reduces power waste.

Microway customers have successfully deployed these systems in many environments, including HPC clusters, server farms and Virtual Desktop Infrastructures (VDI).

Four Independent Xeon Half-Width Servers, each with:Intel Xeon Logo

  • Up to 56 processor cores
  • Up to 2 TB memory
  • Up to 48 TB storage built-in
  • Hot-Swap 3.5” drive bays for hard drives and SSDs (2.5″ drives optional)
  • Energy-efficient. High-efficiency power-supplies and auto-speed cooling fans.
  • Reliable! Customers commonly use Microway servers for 5+ years.

Four Independent Xeon Half-Width Servers, each with:

  • (2) Intel Xeon Processor Sockets; Xeon Scalable Processor “Cascade Lake-SP” CPUs (clock speed: up to 3.8 GHz)
  • Six-Channel DDR4 2933 Mhz ECC/Registered Memory (16 slots, 12 DIMMs recommended)
  • (3) Hot-Swap 3.5” 12Gbps drive bays or (6) Hot-Swap 2.5″ 12Gbps drive bays
  • Optional Hardware RAID or NVMe configurations
  • Direct PCI-Express 3.0 links to CPUs (48 lanes per socket)
  • Network via SIOM mezzanine cards- wide array of options including Ethernet, Mellanox InfiniBand
  • IPMI 2.0 with Dedicated LAN Support
  • Rear USB 3.0 ports
  • Shared 2200W 1+1 Redundant High-Efficiency Power Supply

Options for Hardware Accessories/Add-ons & Software Tools/Libraries

  • UPS power backup and surge suppression
  • 10/25/50/100G Ethernet or ConnectX-4 EDR 100Gb or ConnectX-3 Pro 56Gb/s InfiniBand
  • Portland Group compilers (PGI)
  • Intel compilers, libraries and tools

Supported for Life

Our technicians and sales staff consistently ensure that your entire experience with Microway is handled promptly, creatively, and professionally.

Telephone support is available for the lifetime of your server(s) by Microway’s experienced technicians. After the initial warranty period, hardware warranties are offered on an annual basis. Out-of-warranty repairs are available on a time & materials basis.

System Price: $11,999+

Each Microway system is customized to your requirements. Final pricing depends upon configuration and any applicable educational or government discounts.

Call a Microway Sales Engineer for Assistance : 508.746.7341 or
Click Here to Request More Information.

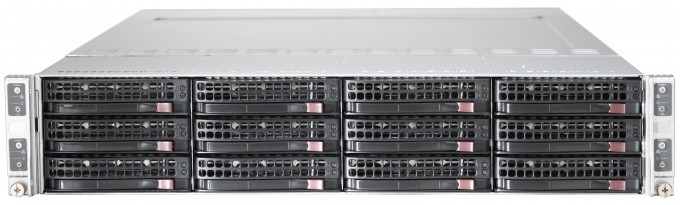

Microway 2U Twin Server chassis with 3.5 inch drive bays Microway 2U Twin Server chassis with 2.5 inch drive bays
