NumberSmasher Xeon 2U Twin Systems (Two Servers in 2U)

2U Twin Xeon High-Density Servers

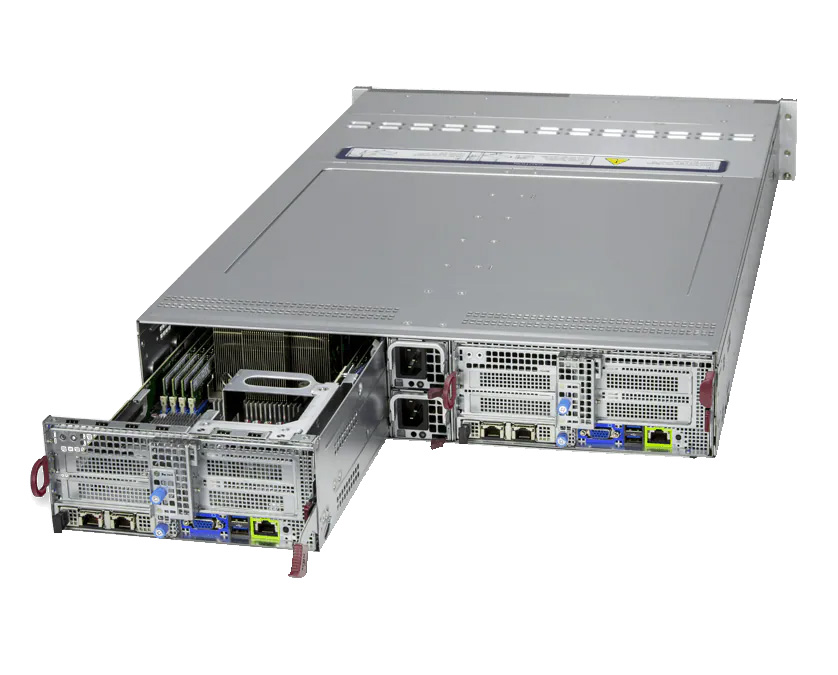

NumberSmasher 2U Twin Xeon systems are high-density, cost-effective rack servers ideal for compute- & memory-intensive applications. Each of two modules operates as an independent server with its own CPUs, memory, networking and storage. The 2U chassis provides shared cooling and redundant power supplies, which increases efficiency and reduces power waste.

Our 2U Twin Server differs from our 2U Twin2 servers in trading density for wider support of various CPU TDPs, memory configurations, and additional PCI-Express slots.


Two Independent Xeon Half-Width Servers, each with:Intel Xeon Logo

  • Up to 120 processor cores
  • Up to 4 TB memory
  • Up to 360 TB storage built-in
  • Hot-Swap U.3 NVMe drive bays for hard drives and SSDs (3.5″ drives or HW RAID optional)
  • Energy-efficient. High-efficiency power-supplies and auto-speed cooling fans.
  • Reliable! Customers commonly use Microway servers for 5+ years.


Two Independent Xeon Half-Width Servers, each with:

  • (2) Intel Xeon Processor Sockets; 4th Gen Xeon Scalable Processor “Sapphire Rapids” CPUs (clock speed: up to 3.7 GHz)
  • Eight-Channel DDR5 4800 MHz ECC/Registered Memory (16 slots)
  • (12) Hot-Swap U.3 NVMe” NVMe drive bays or Hot-Swap 3.5″ SAS/SATA drive bays
  • Optional Hardware RAID configurations
  • Network via AIOM/OCP 3.0 compliant mezzanine cards or PCI-E: wide array of options available including Ethernet, Omni Path, or InfiniBand
  • Two low-profile PCI-E x8 5.0 low-profile slots, One PCI-E x16 low-profile slot
  • IPMI 2.0 with Dedicated LAN Support
  • Rear USB 3.0 ports
  • Shared 2200W 1+1 Redundant High-Efficiency Power Supply


Options for Hardware Accessories/Add-ons & Software Tools/Libraries

  • UPS power backup and surge suppression
  • 25/50/100/200G Ethernet or ConnectX-7 400Gb NDR, ConnectX-6 200Gb HDR
  • Intel compilers, libraries and tools


Supported for Life

Our technicians and sales staff consistently ensure that your entire experience with Microway is handled promptly, creatively, and professionally.

Telephone support is available for the lifetime of your server(s) by Microway’s experienced technicians. After the initial warranty period, hardware warranties are offered on an annual basis. Out-of-warranty repairs are available on a time & materials basis.


System Price: $11,999+

Each Microway system is customized to your requirements. Final pricing depends upon configuration and any applicable educational or government discounts.

Call a Microway Sales Engineer for Assistance : 508.746.7341 or
Click Here to Request More Information.
