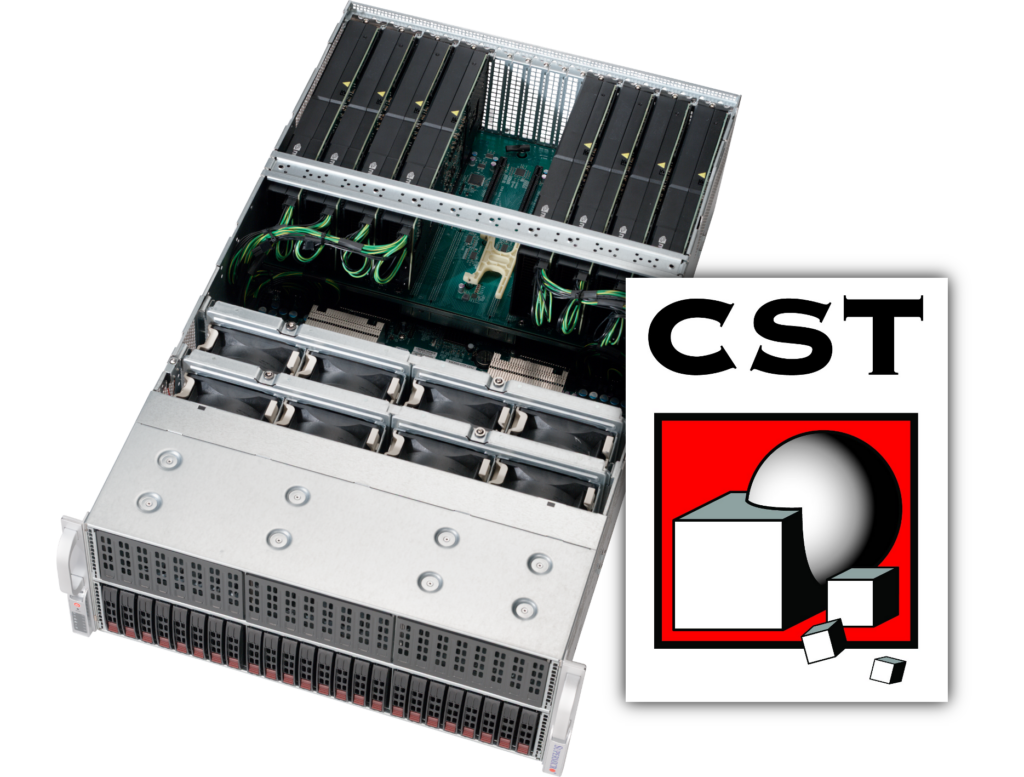

Photo of Microway's GPU Server for Large Electronic Simulations in CST STUDIO SUITE

GPU-Accelerated Server for Large Electronic Simulations in CST STUDIO SUITE®

Improve Simulation Times on Large Electronic Structures with Tesla GPUs, CST STUDIO SUITE, and Microway

Microway’s NumberSmasher® GPU-accelerated servers provide a pre-configured platform for CST STUDIO SUITE. These systems are 4U rackmount servers supporting up to eight NVIDIA Quadro or Tesla V100 GPUs (along with additional slots for networking, storage connectivity and professional Quadro graphics). They enable high-speed simulations of one to two billion mesh cells using CST’s Transient Solver (exact model size depends upon the particulars of the materials).

The high memory bandwidth and parallel processing abilities of GPUs provide significant simulation speed advantages over conventional CPU computing. CST STUDIO SUITE supports GPU computing in the transient solver, integral equation solver, transmission line matrix (TLM) solver and particle-in-cell (PIC) solver, using NVIDIA Tesla® GPUs.

Need more compute power? Our NumberSmasher servers can be linked together via InfiniBand to provide a powerful HPC cluster for CST STUDIO SUITE.

Features

  • Pre-configured for large electronic simulations with CST MICROWAVE STUDIO®
  • Up to 8 NVIDIA Quadro or Tesla V100 GPUs
  • NVIDIA Quadro graphics for accelerated 3D visualization
  • Up to 56 processor cores
  • Up to 6 TB memory
  • Up to 48 TB storage built-in, with optional hardware RAID

Specifications

  • (2) Intel Xeon Xeon Scalable Processor “Cascade Lake-SP” CPUs (clock speed: up to 3.8 GHz)
  • Six-Channel DDR4 2933 Mhz / 2666 MHz ECC/Registered Memory (24 slots)
  • (24) 2.5″ 12Gbps hot-swap drive bays (with optional upgrade to 48 bays)
  • Eight PCI-Express 3.0 x16 double-width slots
  • Four Broadcom PLX PCI-Express 3.0 Switches (switched architecture)
  • Two PCI-Express 3.0 x8 slots (physical x16)
  • One PCI-Express 2.0 x4 slot (physical x16)
  • Two integrated Intel 10 Gigabit Ethernet ports
  • IPMI 2.0 with Dedicated LAN Support
  • 4000W 2+2 Redundant, High-Efficiency Power Supply

Accessories/Options

  • ConnectX-6 HDR 200Gb, ConnectX-5 EDR 100Gb InfiniBand, or 10/25/50/100Gb Ethernet
  • Hardware RAID support
  • TPM 2.0, with optional TXT support
  • Red Hat Enterprise Linux or CentOS Linux
  • Windows 7 Pro (EOL), Windows 10, Windows Server

Support

Supported for Life

Our technicians and sales staff consistently ensure that your entire experience with Microway is handled promptly, creatively, and professionally.

Telephone support is available for the lifetime of your server(s) by Microway’s experienced technicians. After the initial warranty period, hardware warranties are offered on an annual basis. Out-of-warranty repairs are available on a time & materials basis.

Price

System Price: $19,000 to $98,000

Each Microway system is customized to your requirements. Final pricing depends upon configuration and any applicable educational or government discounts.

Call a Microway Sales Engineer for Assistance : 508.746.7341 or
Click Here to Request More Information.
