Screenshot of COMSOL multiphysics running an example model: axial field magnetic gear in 3D

WhisperStation for COMSOL


Incredible COMSOL Performance, Quietest Configuration Available

Microway experts, backed by years of architecting for COMSOL and testing of real world COMSOL models, will challenge convention and deliver you a better workstation for COMSOL. WhisperStation for COMSOL custom configurations deliver top-end performance at mid-level pricepoints: for example, by recommending mid-range CPUs that are very-well suited to COMSOL workloads.

We’ll recommend where to put your upgrade dollars—and even steer you away from higher cost choices which would be a detriment to performance.

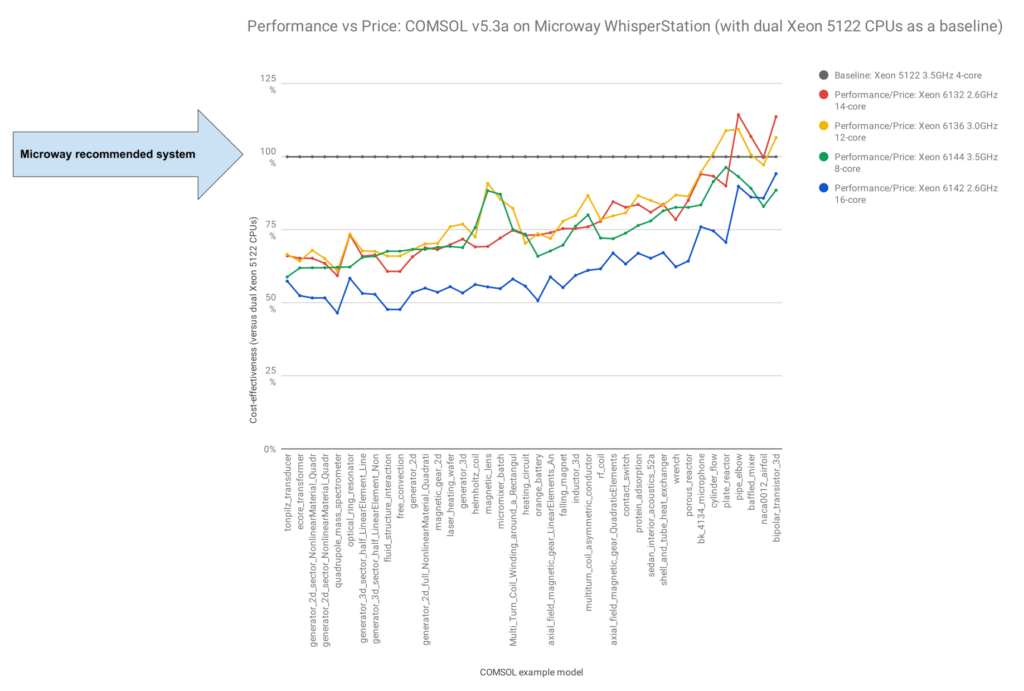

Chart of COMSOL performance versus price

Optimized for COMSOL’s Performance

WhisperStation for COMSOL prioritizes memory speed first, the most important determinant of time to solution.

Built with COMSOL-Tuned CPU Choices

We configure with CPUs that perform for COMSOL solvers – with the high clock speeds and loads of memory bandwidth they need.

Fast Scratch for Models

All WhisperStation for COMSOL configurations include a fast SSD to ensure models being loaded into memory, and solver writes, can be performed as rapidly as possible.

Options for Increased Parallelization, Only When it Delivers

Don’t spend more money for less performance. WhisperStation for COMSOL configurations don’t climb a costly core count ladder— instead we recommend only the models that perform.

Quietest COMSOL Workstation Available

Our team delivers the quietest possible workstations. Features include noise isolation material, silent fans, liquid cooling where appropriate, and careful chassis choices.

Leading Graphics for Visualization of Your Models

WhisperStation for COMSOL configurations include an NVIDIA Quadro GPU for model visualization. Based upon the complexity of your simulations, we’ll recommend which Quadro GPU is best.

Features

  • Quiet! Most configurations are barely audible when placed beside your desk.
  • Special High Clock Speed Processors that are optimal for COMSOL solvers
  • Up to 4 TB DDR4 memory
  • Fixed or hot-swap drive bays for hard drives and NVMe SSDs
  • Energy-efficient. Compatible with standard home and office electrical outlets.
  • Reliable! Customers commonly use WhisperStations for 5+ years.

Benchmarks

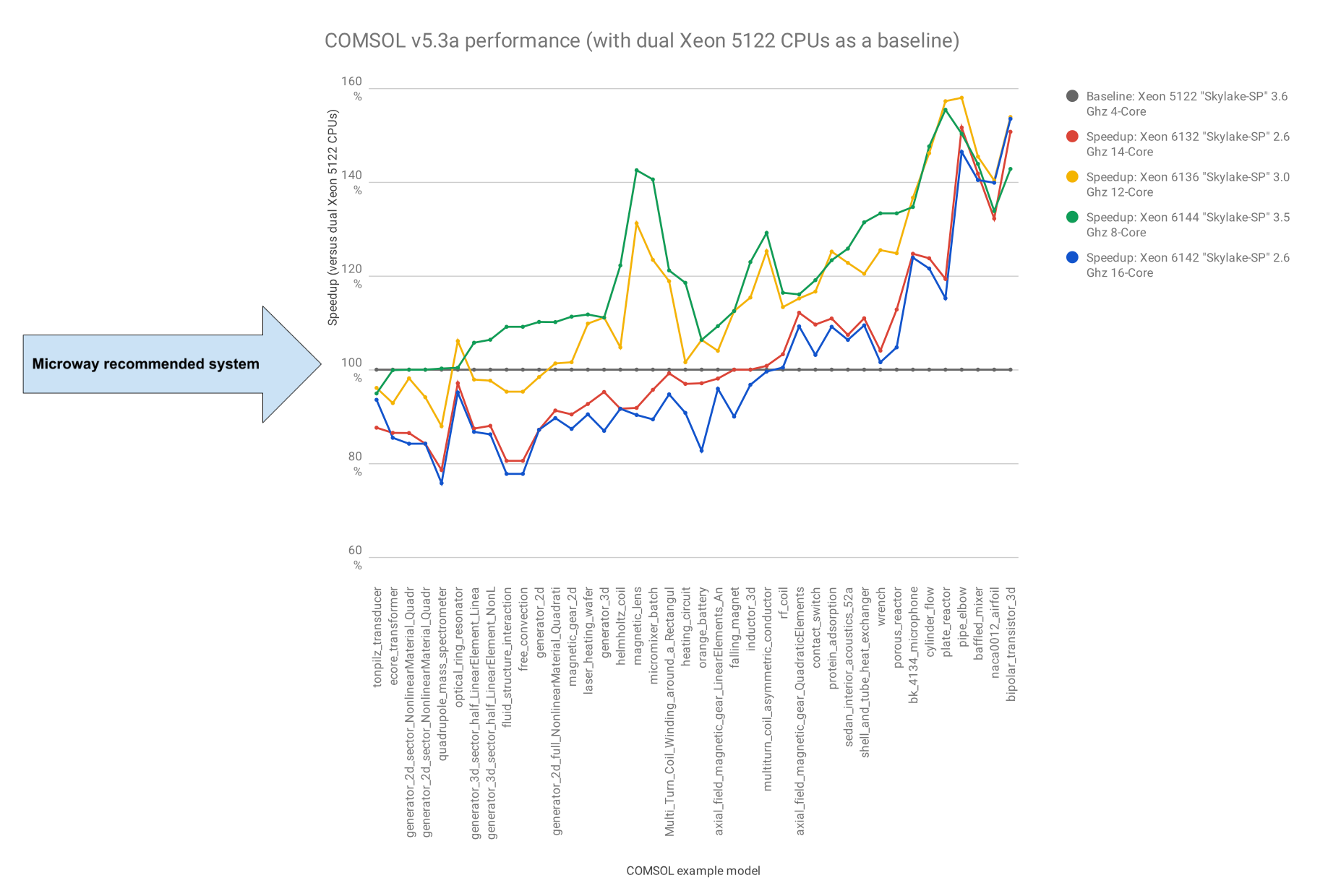

Chart of COMSOL performance

Specifications

  • Intel 3rd Gen Xeon Scalable Processor “Ice Lake-SP” CPUs (clock speed: up to 3.6 GHz)
  • Eight-Channel 3200 Mhz ECC/Registered Memory for 3rd Gen Xeon Scalable Processor configurations
  • Professional Graphics with NVIDIA RTX™ Professional GPUs
  • SATA, PCI-E or NVMe SSD for fast COMSOL scratch space
  • (4) Fixed or Hot-Swap 3.5″ 6Gbps drive bays
  • Dual integrated Gigabit Ethernet ports
  • Removable Storage:
    • CD, DVD Read / Write / Re-Write (optional Bluray)
    • Front USB 2.0 ports and and rear USB 3.0 ports
    • Optional Thunderbolt
  • High-efficiency 80 PLUS certified quiet power-supply

Accessories/Options

  • Expand storage capacity up to 864 TB+
  • UPS power backup and surge suppression
  • 10/25/50/100G Ethernet, ConnectX-6 200G HDR InfiniBand
  • Multiple LCD Monitors, 4K Displays or 3D Displays

Support

Supported for Life

Our technicians and sales staff consistently ensure that your entire experience with Microway is handled promptly, creatively, and professionally.

Telephone support is available for the lifetime of your workstation by Microway’s experienced technicians. After the initial warranty period, hardware warranties are offered on an annual basis. Out-of-warranty repairs are available on a time & materials basis.

Price

System Price: $7,900 to $16,700

Each Microway system is customized to your requirements. Final pricing depends upon configuration and any applicable educational or government discounts.

Call a Microway Sales Engineer for Assistance : 508.746.7341 or
Click Here to Request More Information.
