DDN EXAScaler

DGX POD

Custom Parallel Storage Solutions for HPC and AI

EXAScaler is a custom parallel storage deployment for HPC & AI clusters.

Built on Lustre technology, DDN EXAScaler solutions augment with enterprise level hardening and additional features. Every parallel storage solution from Microway and DDN is architected for high performance, provides near linear scaling inside the appliance, and has the potential for expansion up to hundreds of petabytes.

Why EXAScaler?

Ultra-High Performance

Keep pace with demanding HPC and AI codes, large groups of users, and diverse I/O mixes. EXAScaler solutions have the dedicated, high bandwidth, hardware architecture your toughest workloads need.

Limitless Scalability

EXAScaler does that: scale effortlessly from terabytes to petabytes to exabytes. Keep up with the explosion of data in your organization.

Best Blend of Community and Enterprise Features

EXAScaler has roots in community Lustre code and can be managed by those with open-source Lustre expertise. Yet it also adds new enterprise features and functionality and comes with 24×7 enterprise support.

Custom Architected

Microway and DDN experts. Whether that’s a capacity + performance metric, a workload, an I/O profile, or a design ready for enormous capacity expansion, our teams can tailor the EXAScaler solution to you.

Sample EXAScaler Configurations

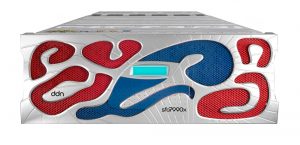

DDN EXAScaler with ES7990X Host

Parallel Storage for Departmental Clusters and Up Specifications

  • Up to ~25GB/sec R with 20GB/sec W; hundreds of Terabytes to Petabytes
  • Up to 800,000 IOPS
  • Up to 450 total drives with up to 4 additional expansion chassis—mix of spindles and SSDs
  • 12Gb SAS backbone to drives and enclosures
  • Fully redundant storage nodes in host chassis and Declustered RAID in Appliance
  • DDN SFA OS with EXA5 Parallel Filesystem
  • Lustre Parallel Storage for Performance but NFS, SMB, HDFS and S3 gateways available
  • 200Gb/100Gb InfiniBand, 100Gb Ethernet, OPA, or Fibre Channel

Request Quotation

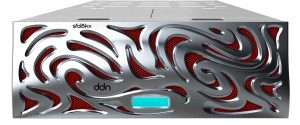

DDN EXAScaler with ES18K Host

Parallel Storage for Larger Institutions Specifications

  • Up to ~70GB/sec R with 70GB/sec W; scales to over 25PB!
  • Up to 3,000,000 IOPS
  • Up to 1872 total drives with up to 19 additional chassis—mix of spindles and SSDs
  • NVMe-based Storage Fusion Fabric to drives and enclosures
  • Fully redundant storage nodes in host chassis and Declustered RAID in Appliance
  • DDN SFA OS with EXA5 Parallel Filesystem
  • Lustre Parallel Storage for Performance but NFS, SMB, HDFS and S3 gateways available
  • 200Gb/100Gb InfiniBand, 100Gb Ethernet

Request Quotation

DDN EXAScaler on ES200NVX

All Flash Solution for Intense IO Specifications

  • Up to ~24GB/sec R with 20GB/sec W, capacity up to ~256TB
  • Up to 1,500,000 IOPS
  • Up to 24 NVMe SSDs
  • Fully redundant storage nodes in host chassis and Declustered RAID in Appliance
  • DDN SFA OS with EXA5 Parallel Filesystem
  • Lustre Parallel Storage for Performance but NFS, SMB, HDFS and S3 gateways available
  • 200Gb/100Gb InfiniBand, 100Gb Ethernet

Request Quotation

DDN EXAScaler ES400NVX and Spindle Expansion

Intense I/O with Large Capacity Specifications

  • Up to ~48GB/sec R with 30GB/sec W
  • Up to 3,000,000 IOPS
  • Up to 384 total drives with up to 4 additional chassis—mix of spindles and NVMe for performance
  • Fully redundant storage nodes in host chassis and Declustered RAID in Appliance
  • DDN SFA OS with EXA5 Parallel Filesystem
  • Lustre Parallel Storage for Performance but NFS, SMB, HDFS and S3 gateways available
  • 200Gb/100Gb InfiniBand, 100Gb Ethernet

Request Quotation

Custom Parallel Storage Solutions

Looking for something that fit these samples or need help assessing what’s best? Let us design a system that meets your needs.

Key Capabilities

  • Capacities 1PB or beyond
  • Throughput >20-500GB/sec
  • Dynamic capacity expansion

Contact Us

DDN EXAScaler Technical Resources
