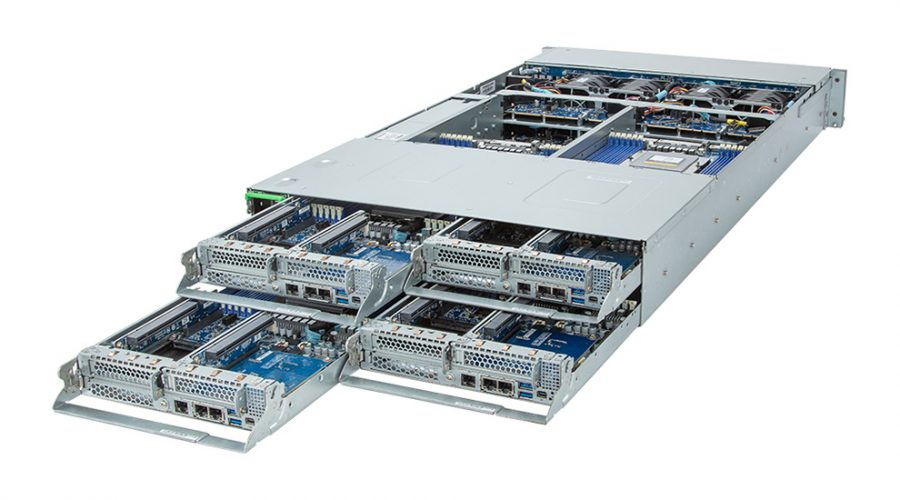

Navion AMD EPYC 2U Twin² Systems (Four Servers in 2U)

2U Twin2 AMD EPYC 9004 series Compute Nodes

Navion Twin2 AMD EPYC systems provide leadership HPC performance with the maximum core counts in a dense, cost-effective form factor.

Each of the four units operates as an independent server with its own CPUs, memory, networking and storage. They are individually serviceable – each may be removed while the remaining three units continue running. The 2U chassis provides shared cooling, optional liquid cooling, and redundant power supplies, which increase efficiency and reduces power waste.

Microway has successfully deployed these systems in many environments, including HPC clusters, server farms and converged infrastructure. Each can be custom-configured to exact user specifications, including large memory, hardware RAID, and high-speed networking.


Four Independent AMD EPYC Compute Nodes, each with:

  • Logo of the AMD EPYC SoC CPUUp to 192 processor cores
    Liquid cooling may be required for high core count CPU SKUs
  • Up to 6 TB memory
  • Up to 12 TB storage built-in
  • Hot-Swap 2.5” drive bays for hard drives and SSDs
  • Energy-efficient. High-efficiency power-supplies and auto-speed cooling fans.
  • Reliable! Customers commonly use Microway servers for 5+ years.


Four Independent Compute Nodes, each with:

  • (2) Processor Sockets with AMD EPYC 9004 Series CPUs (clock speed: up to 4.1Ghz)
    Liquid cooling may be required for high core count CPU SKUs
  • Twelve-Channel DDR5 4800 MHz ECC/Registered Memory (24 slots)
  • (6) Hot-Swap 2.5” U.2 drive bays
  • Ethernet or InfiniBand via OCP 3.0 mezzanine slot
  • Low profile PCI-Ex16 5.0 slot
  • IPMI 2.0 with Dedicated LAN Support
  • Rear USB 3.0 ports
  • Shared 2600W 1+1 Redundant High-Efficiency Power Supply


Options for Hardware Accessories/Add-ons & Software Tools/Libraries

  • 25G/50G/100G Ethernet or ConnectX-7 400Gb NDR or ConnectX-6 200Gb HDR InfiniBand
  • UPS power backup and surge suppression


Supported for Life

Our technicians and sales staff consistently ensure that your entire experience with Microway is handled promptly, creatively, and professionally.

Telephone support is available for the lifetime of your server(s) by Microway’s experienced technicians. After the initial warranty period, hardware warranties are offered on an annual basis. Out-of-warranty repairs are available on a time & materials basis.


System Price: $21,450 to $115,900 (pricing includes all 4 nodes)

Each Microway system is customized to your requirements. Final pricing depends upon configuration and any applicable educational or government discounts.

Call a Microway Sales Engineer for Assistance : 508.746.7341 or
Click Here to Request More Information.
