NumberSmasher Xeon 2U Twin² Plus (Four High-Memory Servers in 2U)

Xeon Scalable Processor High-Memory, High-Density Servers

Twin2Plus Xeon systems are a high-memory, dense-flash version of our NumberSmasher Twin2 platform.

Each of the four modules operates as an independent server with its own CPUs, memory, networking and storage. They improve on our standard 2U Twin2 with support for 24-DIMM sockets and plentiful NVMe drive connections.

All servers are individually serviceable – each may be removed while the remaining three units continue running. The 2U chassis provides shared cooling and redundant power supplies, which increases efficiency and reduces power waste. Twin2 platforms are typically far more cost effective than 1U servers for large-scale clustering.

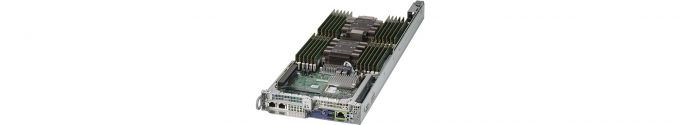

Four Independent Xeon Half-Width Servers, each with:Intel Xeon Logo

  • Up to 56 processor cores
  • 24 DIMM sockets for up to 3 TB memory
  • 24 NVMe drive bays
  • Up to 90 TB storage built-in (per node)
  • Energy-efficient. High-efficiency power-supplies and auto-speed cooling fans.
  • Reliable! Customers commonly use Microway servers for 5+ years.

Four Independent Xeon Half-Width Servers, each with:

  • (2) Intel Xeon Processor Sockets; Xeon Scalable Processor “Cascade Lake-SP” CPUs (clock speed: up to 3.8 GHz)
  • Six-Channel DDR4 2933 Mhz ECC/Registered Memory (24 slots)
  • Intel VROC RAID or optional Hardware RAID configurations
  • Direct PCI-Express 3.0 links to CPUs (48 lanes per socket)
  • Network via SIOM mezzanine cards- wide array of options including Ethernet, Mellanox InfiniBand
  • IPMI 2.0 with Dedicated LAN Support
  • Rear USB 3.0 ports
  • Shared 2200W 1+1 Redundant High-Efficiency Power Supply

Options for Hardware Accessories/Add-ons & Software Tools/Libraries

  • UPS power backup and surge suppression
  • 10/25/50/100G Ethernet or ConnectX-4 EDR 100Gb or ConnectX-3 Pro 56Gb/s InfiniBand
  • Portland Group compilers (PGI)
  • Intel compilers, libraries and tools

Supported for Life

Our technicians and sales staff consistently ensure that your entire experience with Microway is handled promptly, creatively, and professionally.

Telephone support is available for the lifetime of your server(s) by Microway’s experienced technicians. After the initial warranty period, hardware warranties are offered on an annual basis. Out-of-warranty repairs are available on a time & materials basis.

System Price: $16,500+

Each Microway system is customized to your requirements. Final pricing depends upon configuration and any applicable educational or government discounts.

Call a Microway Sales Engineer for Assistance : 508.746.7341 or
Click Here to Request More Information.
